Nengyuan Wisdom ? Reaching the World

High-Quality Air Compressor Manufacturer

400-831-0886

special equipment for oilfield drilling and production - air compressor
Instrument Type And PLC Control Air Compressor

special explosion-proof inflator for oil field

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Rated speed r/min	Cooling method	Weight kg	L x W x H?mm
1	1-0.27/150T	0.27	15	7.5	1000	水冷	430	1330x610x1160
2	1-0.27/150A	0.27	15	7.5	1000	水冷	430	1330x610x1160

Oilfield special screw air compressor

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Connection size	Weight kg	L?x W x H?mm
1	NRLG-22A	3.2	1.0	22	1 1/4	800	1350x830x1200
2	NRLG-37A	5.8	1.0	37	1 1/2	900	1450x950x1300
3	NRLG-45A	6.9	1.0	45	1 1/2	1020	1550x1150x1400
4	NRLG-55A	8.8	1.0	55	DN50	1600	2500x1600x1700

special equipment for oilfield drilling and production - air compressor
cold start air compressor

Oilfield special cold start air compressor

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Rated speed r/min	Weight kg	L x W x H?mm
1	V-1.0/10	1.0	1.0	10.3	970	480	1500x550x850
2	HZ-1.42/10	1.42	1.0	14.7	850	530	1700x670x930
3	HZ-1.6/10	1.6	1.0	14.7	970	530	1700x670x930

special equipment for oilfield drilling and production - air compressor
explosion-proof water-cooled inflator

Special low temperature explosion-proof inflator for oil field (meet normal use in minus 45℃ environment)

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Rated speed r/min	Cooling method	Weight	L x W x?H?mm
1	NR150D低溫型	0.27	15	7.5	1000	水冷	530	1530x610x1160
2	NR200D低溫型	0.27	20	7.5	1000	水冷	550	1530x610x1160

special equipment for oilfield drilling and production - air compressor
explosion-proof air-cooled inflator

Explosion-proof high-pressure air filling pump

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Rated speed r/min	Cooling method	Weight	L x W x H?mm
1	NRW200	0.2	30	4.0	1100	風(fēng)冷	210	1160x650x750
2	NRW300	0.3	30	5.5	1100	風(fēng)冷	220	1160x650x750
3	NRW400	0.4	30	7.5	1100	風(fēng)冷	255	1160x650x750

special equipment for oilfield drilling and production - air compressor
non-explosion-proof water-cooled inflator

non-explosion-proof water-cooled inflator

No.	Model	Volume flow m3/min	Exhaust pressure MPa	Power kW	Rated speed r/min	Weight kg	L x W x H?mm
1	CZ-0.41/200A	0.41	19.6	11	1470	320	1125x500x760
2	CZ-0.42/150A	0.42	14.7	11	1470	320	1125x500x760
3	CZ-0.43/60A	0.43	6.0	11	1470	290	1125x500x760
4	1-0.27/150A	0.27	14.7	7.5	970	280	1125x500x760

special equipment for oilfield drilling and production
pneumatic system skid mounting, dog house, driller house

Air source purification room

special equipment for oilfield drilling and production
spring reset safety valve

Spring reset safety valve

No.	Model	Regulating range psi	Diameter	Connection method	Operating conditions	Weight kg
1	RRV-3x5000Y	1500-5000	3	Union	Standard/H2S	126
2	RRV-3x5000F	1500-5000	3	Flange	Standard/H2S	136
3	RRV-3x5000FY	1500-5000	3	Flange + Union	Standard/H2S	131
4	RRV-3x7500Y	2500-7500	3	Union	Standard/H2S	126
5	RRV-3x7500F	2500-7500	3	Flange	Standard/H2S	118
6	RRV-3x7500FY	2500-7500	3	Flange + Union	Standard/H2S	123

special equipment for oilfield drilling and production-import derrick escape and fall prevention
german Mitmann product series

IKAR speed differential

No.	model	Rope length（m）	Product Number
1	HWS6	6	174535
2	HWS9	9	174536
3	HWS12	12	174537
4	H18	18	174540
5	H24	24	171170
6	H33	33	174541
7	H42	42	171168
8	H50	50	171167
9	H65	65	171171

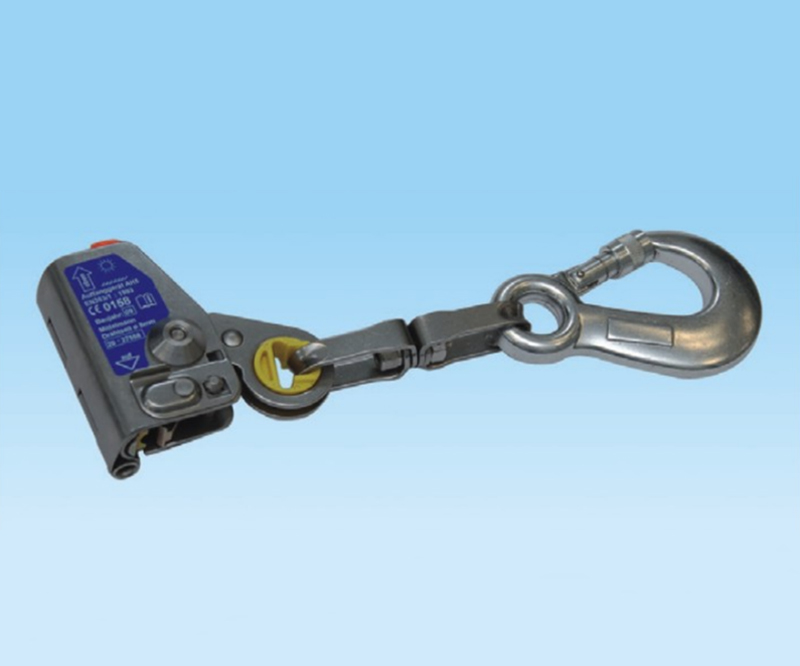

AH5 fall arrester

Germany Midman Derrick Escape Device RG10D

?RG10D 55m two-story platform escape device configuration table
No.	Note	Specification	Number		Tip
1	Descent	RG10D 55M	1	pcs	Including Ф5×55m high-strength galvanized up and down rope
2	Guide rope galvanized steel wire rope	Ф10×55M	2	pcs	High-strength galvanized steel wire rope
3	Suspension body		1	pcs	Protect the descender and connect the derrick and guide rope
4	Manual controller	ABS12	2	pcs	Special copper alloy stainless steel material
5	Fixed rope (galvanized steel wire rope)	Ф12×2M	1	pcs	Maximum tensile strength: 5.2T
6	High strength bolt with M24 nut	M24X150	2	pcs	Ground anchor supporting
7	M16 stainless steel flange screws (circle to circle)	M16	2	pcs	Adjust the tightness of the guide rope
8	510-10 stainless steel wire rope clamp (with lock nut)	510-10	6	pcs	Fixed guide rope
9	840-10 collar (stainless steel U-shaped)	840-10	2	pcs	Protection guide rope
10	Ground anchor 1.2M		2	pcs	Fixed ground and guide rope
11	Multifunctional safety belt (Optional)	MKA21	1	pcs	Comply with European EN361/EN358 standards

??RG10D 75m two-story platform escape device configuration table
No.	Note	Specification	Number		Tip
1	Descent	RG10D 75M	1	pcs	Including Ф5×75m high-strength galvanized up and down rope
2	Guide rope galvanized steel wire rope	Ф10×75M	2	pcs	High-strength galvanized steel wire rope
3	Suspension body		1	pcs	Protect the descender and connect the derrick and guide rope
4	Manual controller	ABS12	2	pcs	Special copper alloy stainless steel material
5	Fixed rope (galvanized steel wire rope)	Ф12×2M	1	pcs	Maximum tensile strength: 5.2T
6	High strength bolt with M24 nut	M24X150	2	pcs	Ground anchor supporting
7	M16 stainless steel flange screws (circle to circle)	M16	2	pcs	Adjust the tightness of the guide rope
8	510-10 stainless steel wire rope clamp (with lock nut)	510-10	6	pcs	Fixed guide rope
9	840-10 collar (stainless steel U-shaped)	840-10	2	pcs	Protection guide rope
10	Ground anchor 1.2M		2	pcs	Fixed ground and guide rope
11	Multifunctional safety belt (Optional)	MKA21	1	pcs	Comply with European EN361/EN358 standards

special equipment for oilfield drilling and production-import derrick escape and fall prevention
honeywell product series

special equipment for oilfield drilling and production - import derrick escape and fall prevention
3M product series

American 3M escape and speed difference

special equipment for oilfield drilling and production
winch series
